OpenDaylight开发hello-world项目之功能实现

来到最后的功能实现的步骤，功能实现其实很简单，添加一个yang文件，编译，添加接口实现代码，编译，ok，搞定收工。

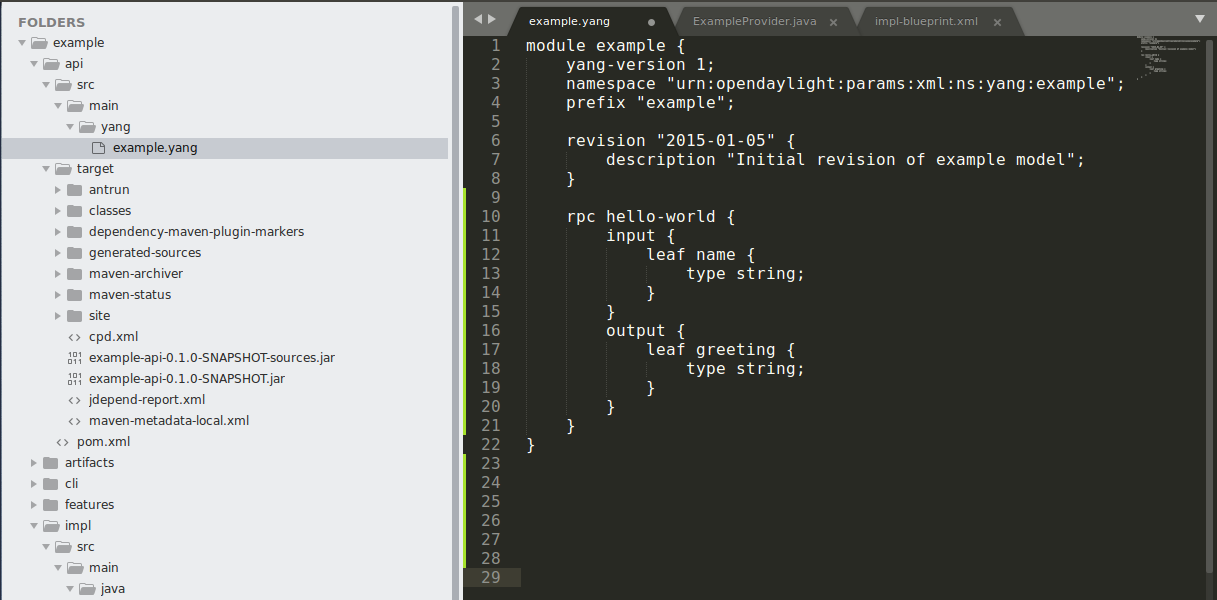

yang文件编写

yang文件简单理解为是定义接口和传入参数的文件，在hello world项目中定了一个接口叫hello-world,需要传入的参数是：input标签中的name变量，类型为string，输出的信息为outpu标签中定义的greeting变量，类型也是string。

module example { yang–version 1; namespace "urn:opendaylight:params:xml:ns:yang:example"; prefix "example"; revision "2015-01-05" { description "Initial revision of example model"; } rpc hello–world { input { leaf name { type string; } } output { leaf greeting { type string; } } } }

定义好yang文件之后编译，odl的框架会自动生成很多代码，包括rpc中函数的定义，文件的引用等。

mvn clean install –DskipTests –Dmaven.javadoc.skip=true –Dcheckstyle.skip=true

[INFO] [INFO] — maven–site–plugin:3.6:attach–descriptor (generate–site) @ example–aggregator — [INFO] Attaching 'src/site/site.xml' site descriptor with classifier 'site'. [INFO] ———————————————————————— [INFO] Reactor Summary: [INFO] [INFO] ODL :: org.opendaylight.example :: example–api ….. SUCCESS [ 30.916 s] [INFO] ODL :: org.opendaylight.example :: example–impl …. SUCCESS [ 4.513 s] [INFO] ODL :: org.opendaylight.example :: example–cli ….. SUCCESS [ 4.574 s] [INFO] ODL :: org.opendaylight.example :: example–features SUCCESS [ 20.799 s] [INFO] ODL :: org.opendaylight.example :: example–karaf … SUCCESS [01:16 min] [INFO] ODL :: org.opendaylight.example :: example–artifacts SUCCESS [ 5.072 s] [INFO] ODL :: org.opendaylight.example :: example–it …… SUCCESS [ 7.690 s] [INFO] example …………………………………….. SUCCESS [ 14.771 s] [INFO] ———————————————————————— [INFO] BUILD SUCCESS [INFO] ———————————————————————— [INFO] Total time: 02:53 min [INFO] Finished at: 2019–09–12T17:02:48+08:00 [INFO] Final Memory: 209M/483M [INFO] ————————————————————————

hello world 函数

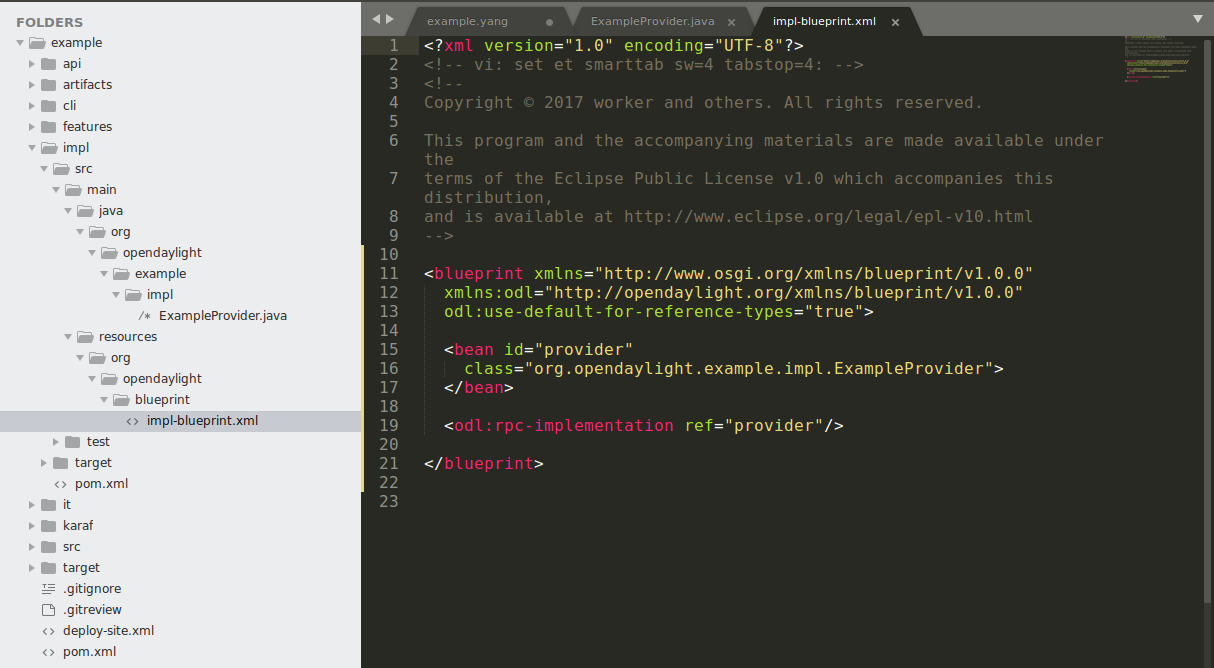

 编译顺利完成之后，首先将该RPC注册到系统当中去。编写impl-blueprint.xml文件，注册ExampleProvider。

<?xml version="1.0" encoding="UTF-8"?> <!– vi: set et smarttab sw=4 tabstop=4: –> <!– Copyright &copy; 2017 worker and others. All rights reserved. This program and the accompanying materials are made available under the terms of the Eclipse Public License v1.0 which accompanies this distribution, and is available at http://www.eclipse.org/legal/epl-v10.html –> <blueprint xmlns="http://www.osgi.org/xmlns/blueprint/v1.0.0" xmlns:odl="http://opendaylight.org/xmlns/blueprint/v1.0.0" odl:use-default-for-reference-types="true"> <bean id="provider" class="org.opendaylight.example.impl.ExampleProvider"> </bean> <odl:rpc-implementation ref="provider"/> </blueprint>

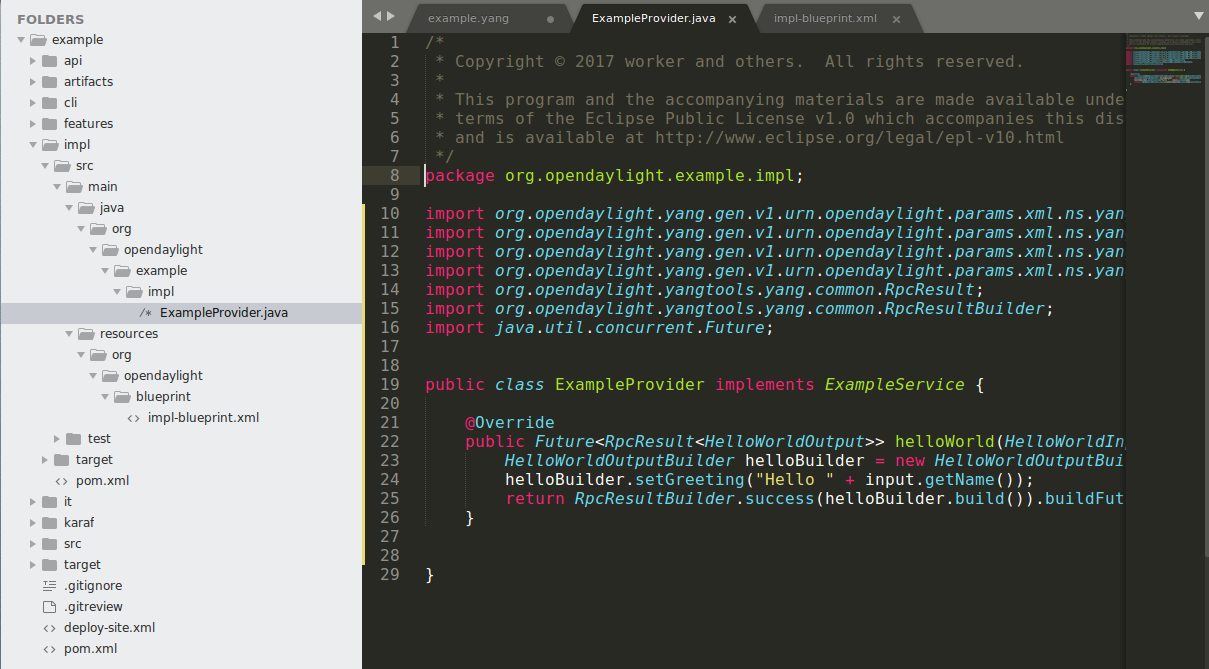

注册好函数之后，最后实现RPC的处理函数。获取input输入的内容，然后返回 &lsquo;hello&rsquo; + input的内容。

package org.opendaylight.example.impl; import org.opendaylight.yang.gen.v1.urn.opendaylight.params.xml.ns.yang.example.rev150105.ExampleService; import org.opendaylight.yang.gen.v1.urn.opendaylight.params.xml.ns.yang.example.rev150105.HelloWorldInput; import org.opendaylight.yang.gen.v1.urn.opendaylight.params.xml.ns.yang.example.rev150105.HelloWorldOutput; import org.opendaylight.yang.gen.v1.urn.opendaylight.params.xml.ns.yang.example.rev150105.HelloWorldOutputBuilder; import org.opendaylight.yangtools.yang.common.RpcResult; import org.opendaylight.yangtools.yang.common.RpcResultBuilder; import java.util.concurrent.Future; public class ExampleProvider implements ExampleService { @Override public Future<RpcResult<HelloWorldOutput>> helloWorld(HelloWorldInput input) { HelloWorldOutputBuilder helloBuilder = new HelloWorldOutputBuilder(); helloBuilder.setGreeting("Hello " + input.getName()); return RpcResultBuilder.success(helloBuilder.build()).buildFuture(); } }

 编译文件

mvn clean install –DskipTests –Dmaven.javadoc.skip=true –Dcheckstyle.skip=true

[INFO] — maven–site–plugin:3.6:attach–descriptor (generate–site) @ example–aggregator — [INFO] Attaching 'src/site/site.xml' site descriptor with classifier 'site'. [INFO] ———————————————————————— [INFO] Reactor Summary: [INFO] [INFO] ODL :: org.opendaylight.example :: example–api ….. SUCCESS [ 35.665 s] [INFO] ODL :: org.opendaylight.example :: example–impl …. SUCCESS [ 5.435 s] [INFO] ODL :: org.opendaylight.example :: example–cli ….. SUCCESS [ 4.453 s] [INFO] ODL :: org.opendaylight.example :: example–features SUCCESS [ 26.418 s] [INFO] ODL :: org.opendaylight.example :: example–karaf … SUCCESS [01:52 min] [INFO] ODL :: org.opendaylight.example :: example–artifacts SUCCESS [ 5.602 s] [INFO] ODL :: org.opendaylight.example :: example–it …… SUCCESS [ 18.424 s] [INFO] example …………………………………….. SUCCESS [ 22.318 s] [INFO] ———————————————————————— [INFO] BUILD SUCCESS [INFO] ———————————————————————— [INFO] Total time: 04:00 min [INFO] Finished at: 2019–08–04T17:31:48+08:00 [INFO] Final Memory: 207M/483M [INFO] ————————————————————————

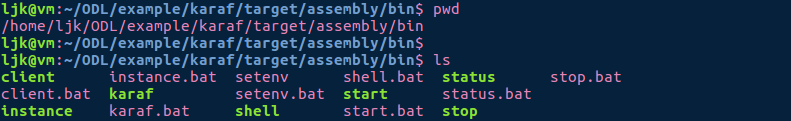

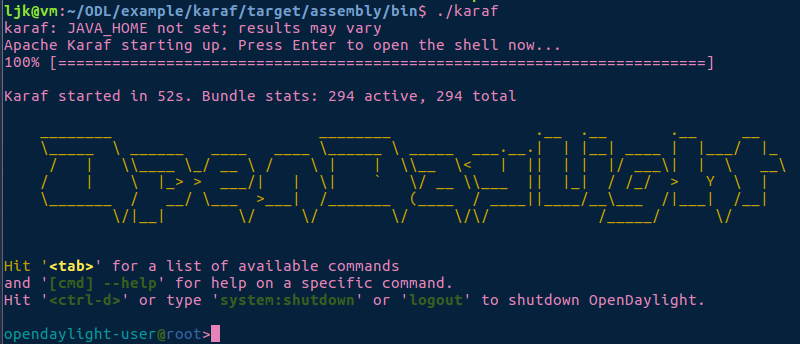

启动ODL

编译通过之后，在karaf文件夹下启动ODL，hello-world模块生效。

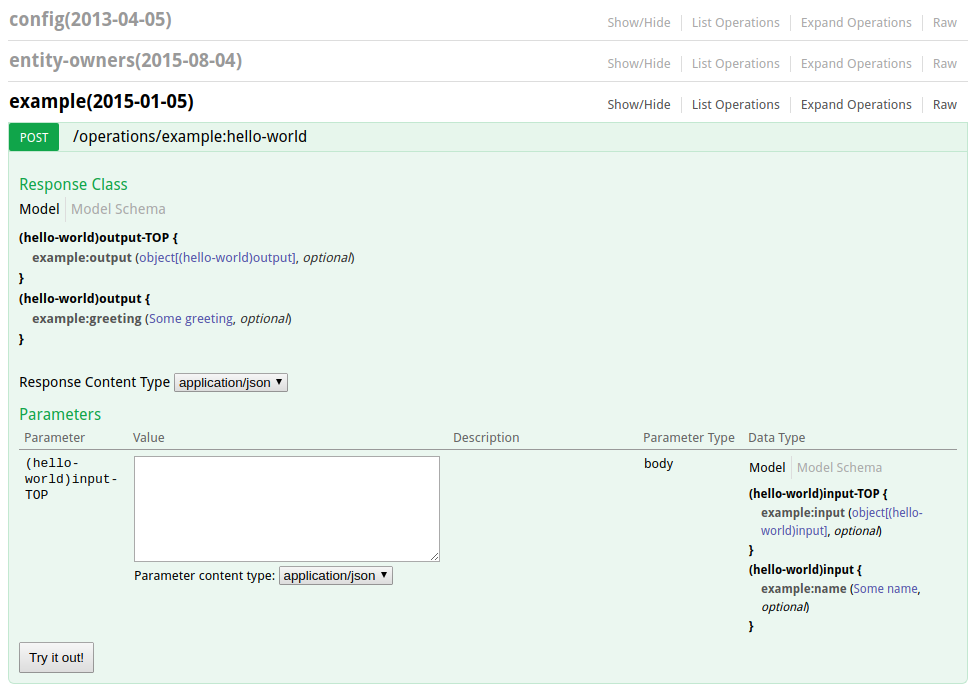

 查看ODL的api文档

当启动ODL之后，可以查看该ODL所有的api文档，在浏览器中输入 地址：http://localhost:8181/apidoc/explorer/index.html，从中能够找新鲜出炉的example模块。

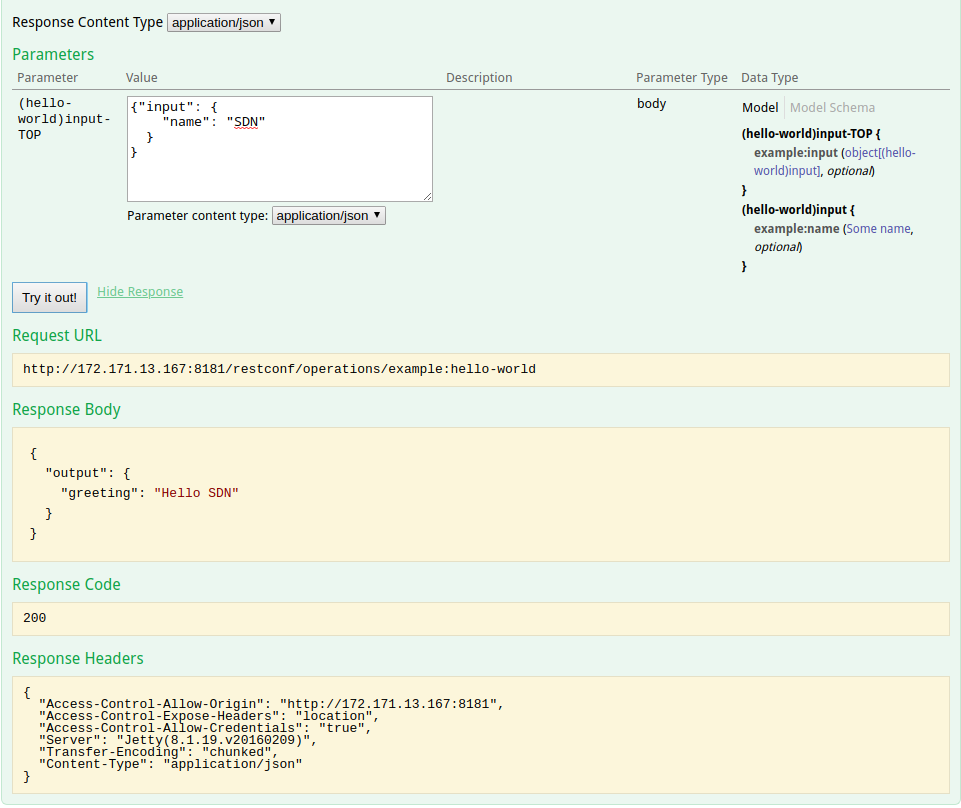

测试接口

在这个api文档中，可以直接测试接口的可用性，按照输入的格式将内容输入，然后try it out！

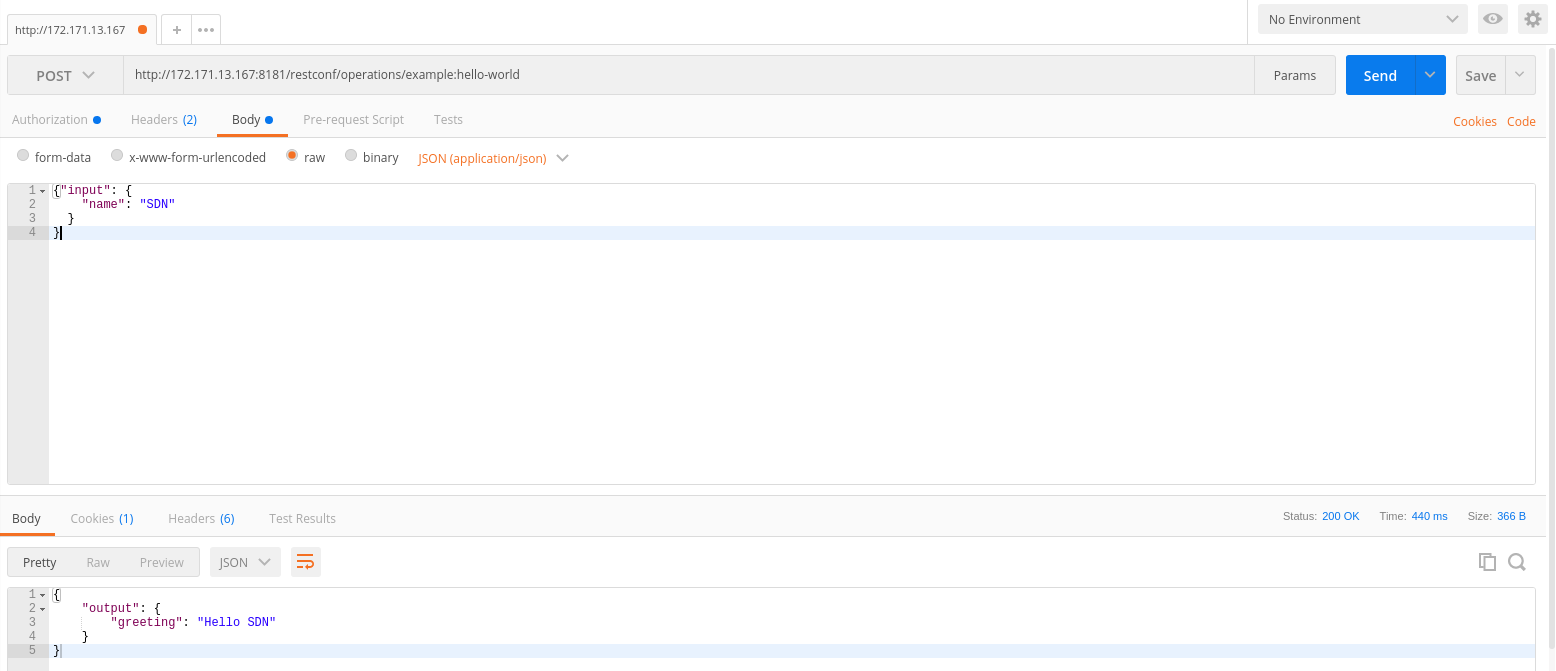

使用Postman测试接口

postman是最常见的测试工具，输入restful api的地址，请求方法，body体，认证方式，然后send。

ODL hello-world模块的学习重点不是功能实现，而是ODL开发模块的过程和套路，其中很多深入的内容并没有介绍全面，主要的注意力还是放在流程上，如何安装环境，构建框架代码，编译，实现功能代码等。
